2.00 Board To Wire Connectors 180° DIP H=6.4 Box Header Au or Sn over Ni

Name: 200 Board To Wire Connectors 180 DIP H64 Box Header Au or Sn over Ni
Brand: WCON
Price: 1 USD

Wholesale 2.00 Board To Wire Connectors 180° DIP H=6.4 Box Header Au or Sn over Ni from china suppliers

Brand Name : WCON

Model Number : 3121B-XXSS0BK00A1

Certification : UL/CUL/SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 800000kpcs

Delivery Time : 15-25Day

Packaging Details : Tube Reel

Contact Plating : Au or Sn over Ni

Current Rating : 2.0AMP

Contact Resistance : 20mΩ Max

Insulator Material : PA9T +30％GF( UL94V-0 )

Contact Now

2.00 Box Header Connector 180° DIP H=6.4 WIth Middle Cut Board end connector

Current Rating	2.0AMP
Contact Resistance	20mΩ Max
Withstand Voltage	500V AC/DC
Insulation Resistance	1000mΩ Min
Operation Temperature	﹣40℃ to +105℃
Contact Material	Brass
Contact Plating	Au or Sn over Ni
Insulator Material	PA9T +30％GF( UL94V-0 )

Product name: Ejector

1. Product features: high temperature resistant to high voltage electrical conductivity

2. Product material: PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating

3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal

2.00 Board To Wire Connectors 180° DIP H=6.4 Box Header Au or Sn over Ni

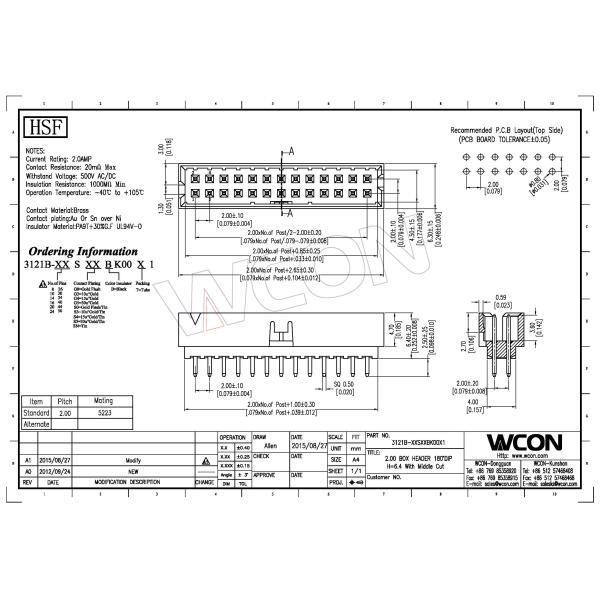

Drawing:Box Header 3121B-XXSXXBK00X1(H=6.4).pdf

Product Tags:

board to wire connectors

male header connector

2.00 Board To Wire Connectors 180° DIP H=6.4 Box Header Au or Sn over Ni Images
